M.2 A+E KEY Ethernet Card RTL8111E/F Industrial Control Network Card 10/100/1000Mbps M.2 RJ45 LAN Network Adapter for Desktop PC

M.2 Network Card 10/100/1000Mbps M.2 A+E To Gigabit Ethernet Card Single Port RJ45 M.2 A+E Ethernet Adapter RTL8111H Chip for Desktop PC for Windows Linux
Feature:
1. High-Speed Networking: Experience rapid connectivity with our M.2 Network Card, supporting full-duplex operation with network speeds up to 1000Mbps. Providing both cross detection and auto correction, this network card is also backward compatible with 10/100BASE-T networks.
2. Automatic Data Rate Negotiation: Our M.2 A+E to Gigabit Ethernet Card supports 10/100/1000Mbps data rate auto-negotiation, ensuring compatibility with existing CAT-5 UTP cables. This card guarantees a convenient, fast, and reliable connection.
3. M.2 A+E KEY NGFF Bus Interface: True to the M.2 A+E KEY NGFF bus interface specification, this high-performing M.2 A+E Ethernet Adapter is also backwardly compatible with 10/100BASE-T networks.
4. Advanced Compliance and Support: The M.2 RJ45 LAN Adapter fully complies with IEEE802.3, IEEE802.3u, and IEEE802.3ab, supporting both half and full-duplex operation, along with 802.3x flow control. It also supports IEEE802.1P Layer2 priority encoding and IEEE 802.1Q VLAN tagging and offers onboard buffer support for sending/receiving.
5. Power-Saving Features and Wake-On-LAN: The Gigabit LAN Card supports cross detection and auto-correction operation, as well as power/link down power-saving. It also features LAN wake-up and remote wake-up functions, enhancing both functionality and energy efficiency.



Specification:
Origin: Mainland China
Type: WIRED
Transmission Rate: 10/100/1000Mbps
Kind: Internal
Network type: M.2 to Gigabit Ethernet
Bus type: M.2 2230 standard interface
Main chipset: Realtek RTL8111H
Transmission medium: 1 X RJ45 electrical port
Transmission rate: Supports 10/100/1000Mbps transmission rate
operating system:
for Windows ME, 98SE, 2000, XP, Vista, for Win 7, for Win 8 and for Win 10 32/64bit for Windows Server 2003,
2008,2012 and 2016 32/64bit for Linux, for DOS for MACosx 10.4.x or above

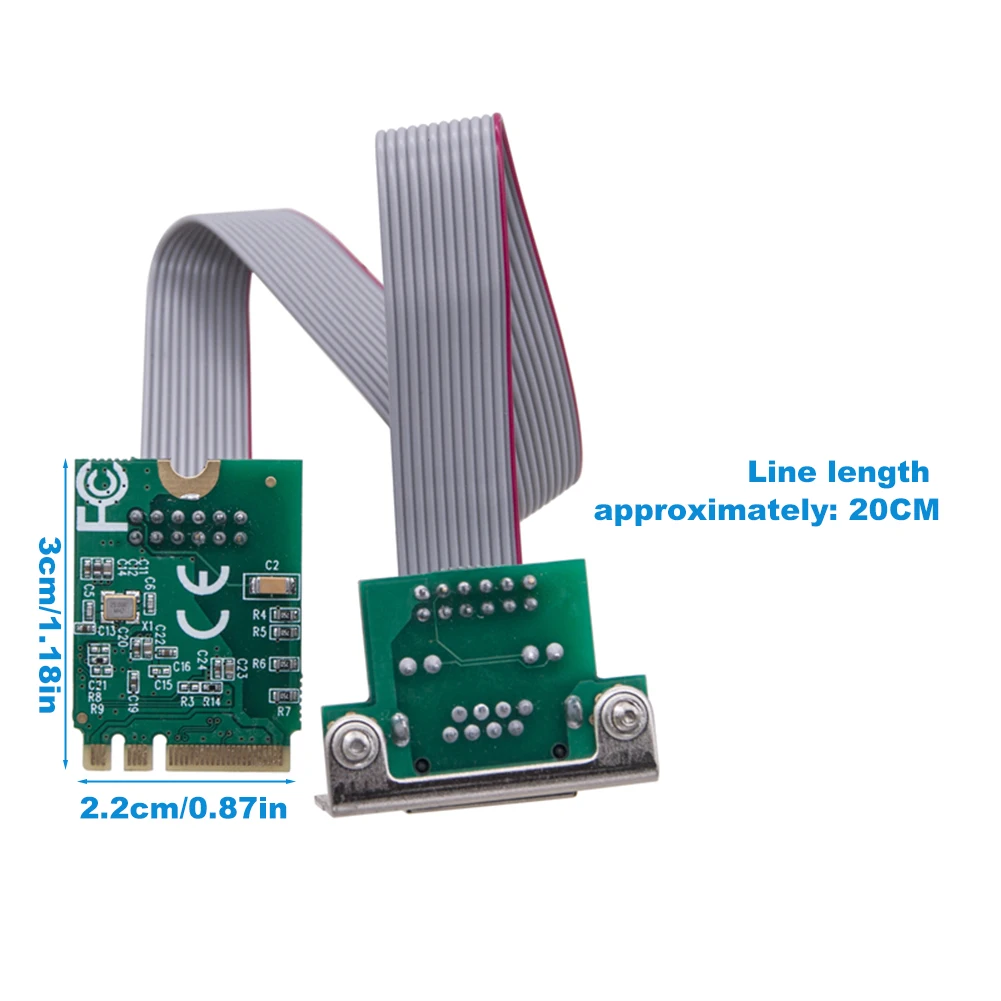

Product size: 30.00x22.00x5.00mm
Product size: 1.18x0.87x0.2inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x M.2 A+E To Gigabit Ethernet Card
