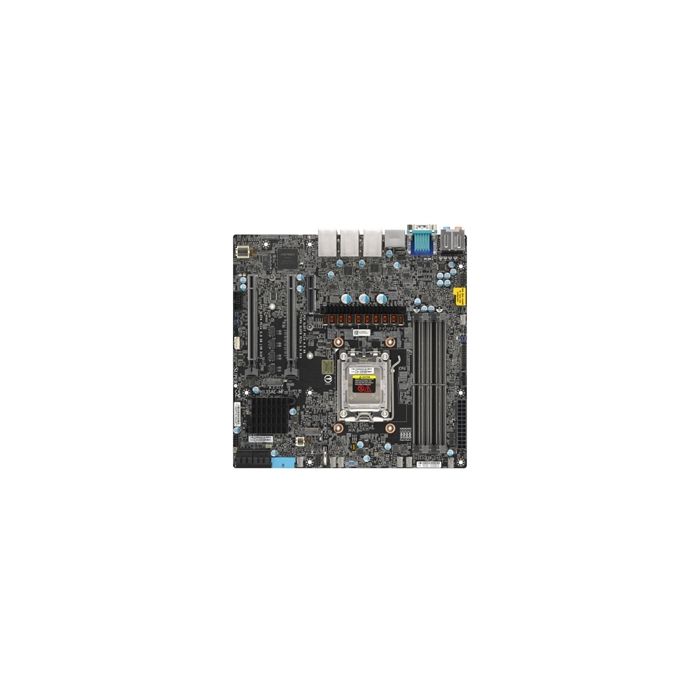

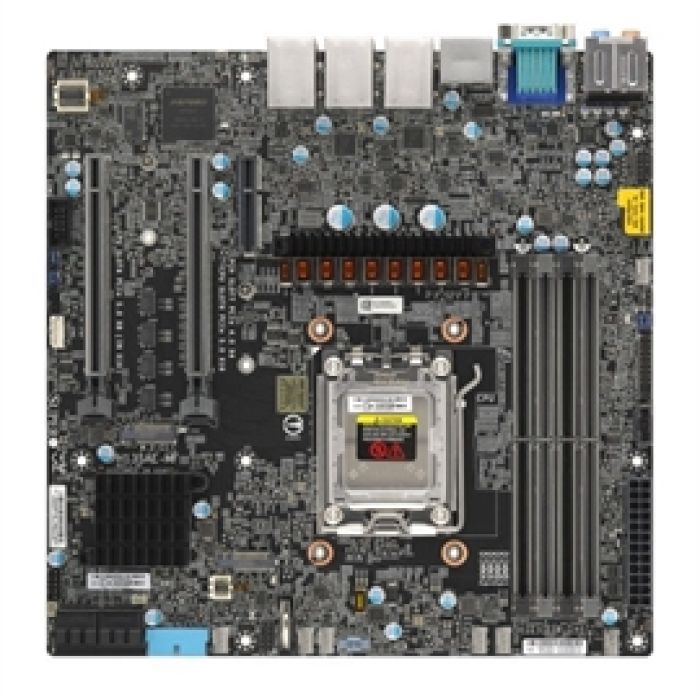

Supermicro Motherboard MBD-H13SAE-MF-O LGA1718 AM5 Ryzen7000 Max128GB DDR5 Micro-ATX Retail
Supermicro MB MBD-H13SAE-MF-O S1718 AM5 Ryzen7000 Max128GB DDR5 Micro-ATX RTL
• AMD EPYC™ 4005, 4004 series or Ryzen™ 9000 & 8700G* (system only) & 7000 series desktop processor, single socket LGA-1718 (socket AM5), up to 170W
• Up to 192GB ECC/non-ECC unbuffered DIMM, DDR5-5600MHz, in 4 DIMM slots
• 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards (mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards); 1 PCIe 4.0 x4
• Dual 1Gbit LAN ports (i210 AT); 1 dedicated Realtek 1Gbit LAN for IPMI
• Micro-ATX form factor
• 1 USB 3.2 Gen2x2 port (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports (2 Type C, rear, support DP 1.4 Alt mode)
• 1 HDMI 2.0 port, 1 DP 1.4a port
• M.2 Interface: 2 PCIe 5.0 x4 (RAID 0 & 1) (2280/22110, M-Key)
• Up to 192GB ECC/non-ECC unbuffered DIMM, DDR5-5600MHz, in 4 DIMM slots
• 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards (mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards); 1 PCIe 4.0 x4
• Dual 1Gbit LAN ports (i210 AT); 1 dedicated Realtek 1Gbit LAN for IPMI
• Micro-ATX form factor
• 1 USB 3.2 Gen2x2 port (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports (2 Type C, rear, support DP 1.4 Alt mode)
• 1 HDMI 2.0 port, 1 DP 1.4a port
• M.2 Interface: 2 PCIe 5.0 x4 (RAID 0 & 1) (2280/22110, M-Key)
