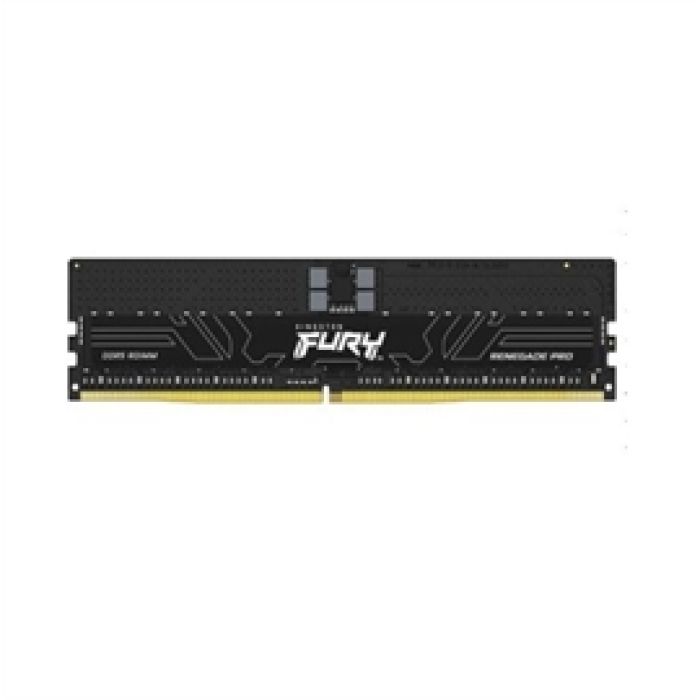

Kingston Memory KF556R36RB-32 32G 5600MT/s DDR5 ECC Reg CL36 FURY Renegade Pro XMP Retail
Kingston ME KF556R36RB-32 32G 5600MT s DDR5 ECC Reg CL36 FURY Renegade Pro XMP
KF556R36RB-32
32GB 1Rx4 4G x 80-Bit
PC5-5600 CL36 Registered EC8 288-Pin DIMM
DESCRIPTION
Kingston FURY KF556R36RB-32 is a 4G x 80-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx4, ECC memory module, based on twenty 4G x 4-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #2: DDR5-5200 CL36-40-40 @1.25V
• XMP Profile #3: DDR5-4800 CL36-38-38 @1.1V
32GB 1Rx4 4G x 80-Bit
PC5-5600 CL36 Registered EC8 288-Pin DIMM
DESCRIPTION
Kingston FURY KF556R36RB-32 is a 4G x 80-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx4, ECC memory module, based on twenty 4G x 4-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #2: DDR5-5200 CL36-40-40 @1.25V
• XMP Profile #3: DDR5-4800 CL36-38-38 @1.1V
