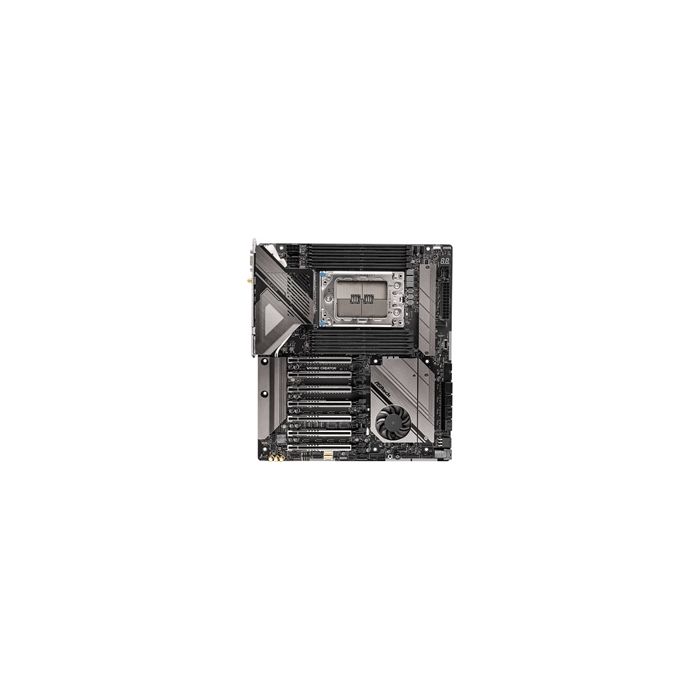

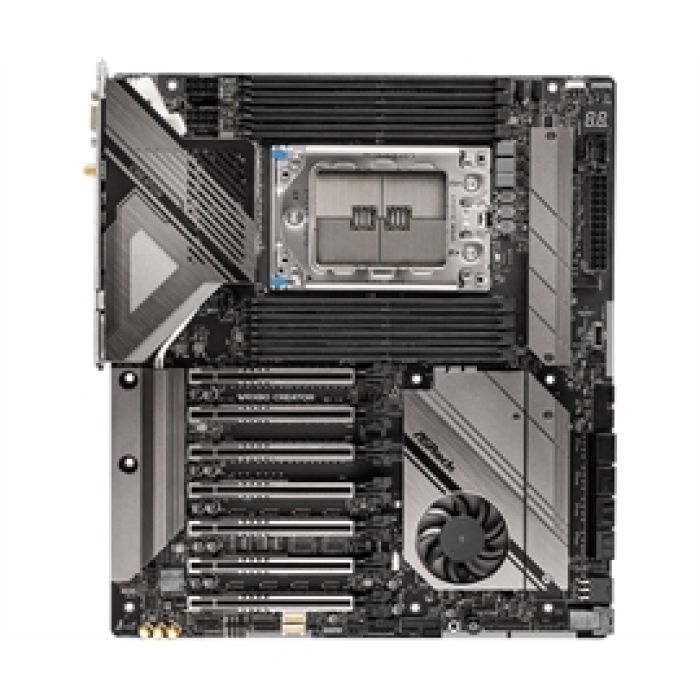

ASRock Motherboard WRX80 Creator R2.0 AMD WRX80 Socket sWRX8 Max2048GB DDR4 EATX Retail

• Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors

• 8 Power Phase Design, 105A SPS

• 14 Layer Server-Grade Low-Loss PCB

• Supports DDR4 4533+(OC)

• 7 PCIe 4.0 x16

• 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),

1 Hyper M.2 (PCIe Gen4 x4 & SATA3),

1 U.2 (PCIe Gen3 x4)

• 2 Thunderbolt™ 4 Type-C

5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear)

6 USB 3.2 Gen1 (4 Front, 2 Rear)

• 7.1 CH HD Audio (Realtek ALC4050H+ALC1220),

Nahimic Audio

• Dual Marvell (Aquantia) 10Gbe LAN,

1 Dedicated IPMI LAN

• Intel® 802.11ax (WiFi 6E) + Bluetooth



SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.


7W/mK MOSFET Thermal Pads

This thermal pads are much more effective than normal pads. With a 7 watt/mK thermal conductivity it is able to effectively dissipate heat from MOSFET
