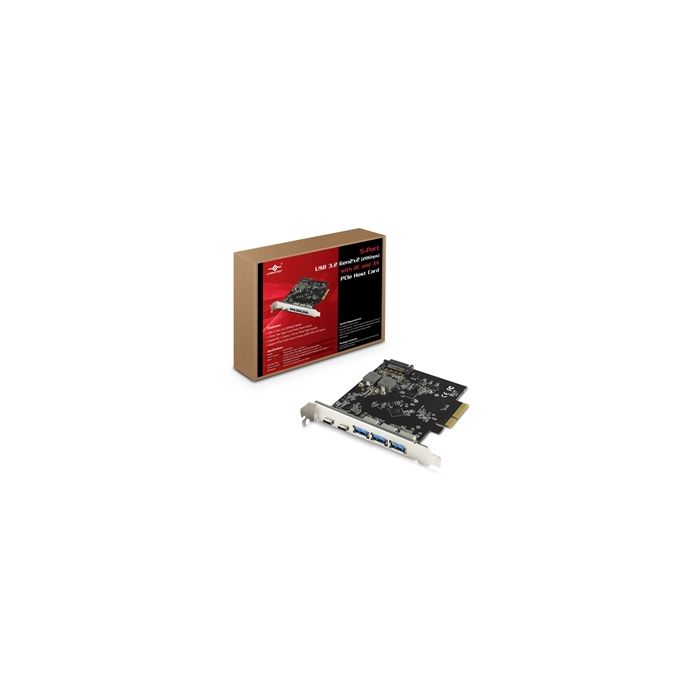

Vantec Controller Card UGT-PC3A2C 5Port USB3.2 Gen2x2 (20Gbps) With 2C And 3A PCIe Host Card Retail

5-Port USB 3.2 Gen2x2 (20Gbps) With 2C And 3A PCIe Host Card

UGT-PC3A2C

The Vantec 5-Port USB 3.2 Gen 2x2 (20Gbps) 2C 3A PCIe Host Card is designed to offer the latest in USB 3.2 Technology. It provides the flexibility of Two Type C and Three Type A ports all on one card. This design links the PCIe Gen3 x2 from the PCIe Bus to all five ports. All three Type-A ports support Battery Charging Specs 1.2 with 1.5A per port. Each port is capable of a theoretical speed of 10Gbps which is twice the speed of older USB 3.0(5Gbps). This speed enables you to access/transfer data extremely faster, and with backward compatibility to older USB 3.0, USB 2.0 or USB 1.1.

Highlight

USB 3.2 Gen 2x2 (20Gbps) Speed to give you the Maximum File Transfer or Backup.Support PCIe x4 slot(use 2 lanes) interface with wider lanes for speed and large amount of data.

Support UASP Devices on both ports for extra boost in speed when using latest OS.

Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus.

Support for Windows and Linux OS for latest Technology

USB 3.1 Type C Port for Newer devices and Type A for Compatibility with older USB 3.0 and 2.0.

Full height PCIe x2 (requires x4 slot)

Backward compatible with legacy USB 3.0, 2.0 and 1.1

Compliant with extensible Host Controller interface specification Revision 1.1

Support Control, Bulk, Stream, Interrupt, Isochronous transfer type

Supports PCI Express® Card Electromechanical Specification Release 2.0

Supports PCI Bus Power Management Interface Specification Release 1.2

Support driver on Windows 7 and native drivers within Windows 8/8.1/10

Support Linux kernel 3.13.0 & above
